SOLD
CARVIN
DCM600 Power Amp Rackmount Power Amplifier DCM-600

600W bridged 4 ohms, 450W bridged 8 ohms.
• Continuous RMS per CH: 8 ohms 125w, 4 ohms 225w, 2 ohms 300w.
• Not rated "pulse power" or at 2 ohms for a few minutes like some amps
• THD 20-20kHz @ rated 90% output: 0.1%, 50% ouput 0.03%.
• High transparent 45v/us slew rate. Studio quality 100 dB S/N ratio.
• INPUTS: 1/4" balanced and female XLR balanced.
• OUTPUTS: 5-way binding post, Speakon(tm) and two 1/4".
• Switches: limiters, ground lift, paralleling inputs, bridge mode.
• Recessed level attenuators, clip, signal, protect and power on indicators.
• Soft-start, DC SpeakerGuard(tm), thermal and short circuit protection relays.
• Variable speed fan. Heavy-duty all steel construction.
• Dynamic low frequency punch with transparent high-end for uncolored sound.
• 2U rackmount 3.5"H x 10"D x 19"W, WT: 19 lbs.





Pristine sound, brute power and no-fault reliability make the DCM amps the power amp of choice for professionals. Designed for continuous operation, overheating is not a problem, especially down at 2 ohms where other amps simply quit. Drive up to four 8 ohm subwoofers per channel and never worry about a shutdown! Massive Toroid power supplies with huge capacitors deliver the bass that kick drums demand - you will feel the deep, resonating power that other amps lack.

Mechanically the DCM's are superior to the imports that are so prevalent today. Each DCM is hand built at our San Diego factory featuring all steel construction, recessed controls and heavy-duty power components. Soft-start relays gently turn the DCM's on so when you plug into a 15 amp breaker it won't trip. The DCM is the only amp that offers the connectivity of 1/4 TRS & XLR inputs along with 1/4", binding post and Neutrik Speakon* outputs on most models.

The rock-solid, efficient design with its superb, testimonial-proven sound, makes the USA built DCM an amp you'll gladly own for years.


...: Condition :...
Shop with confidence ++ Near Mint ~ EXCELLENT ++

...: Included in the auction are :...

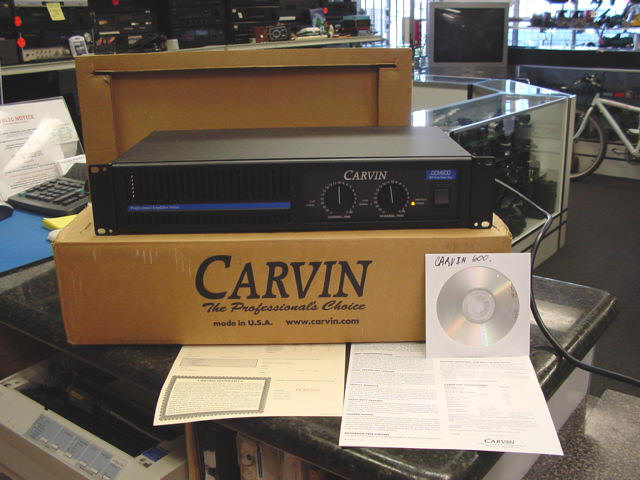

Carvin DCM600
Power Amp & Power Cord
Oem BOX & Papers
Instructions on Paper & CD/r






CONTINUOUS RMS RATED-MORE BASS POWER
In today’s world, many amps are rated in “pulse power”, not true RMS, lacking bass output as shown in Figure 1. Note that these amps lack the reserve current to faithfully reproduce the 2nd kick. Every DCM incorporates massive toroid power supplies and huge filter capacitors assuring full continuous RMS so every kick is heard.

HEAR THE DIFFERENCE
SUPER CLEAN – less than .1% THD +- 1dB 20 to 20kHz • CRYSTAL CLEAR – TRANSPARENT– doesn’t sound “processed” • HIGH SLEW-RATE – better than 50 volts per ΅ second • SOLID BASS – reproduces exactly what the kick drum delivers • SUPER QUIET – no hum or line noise generated internally • OPTIO ISOLATOR LIMITORS – a CARVIN exclusive that eliminates limiter distortion typically inherent in other amps

POWER OUTPUT
CONTINUOUS RMS POWER – not “pulse power” • CONTINUOS KICK BASS– large power supply capacitors maintain reserve voltage • CARVIN’S weight ratio offers more performance per pound. Ultra light amps can have a tendency to under perform especially below 4 ohms and for high current subwoofer applications
• TOROIDS TRANSFORMER – delivers 24 hour continuous operation • CONTINUOS 2 ohms (4 ohms bridge) - other amps turn off • STABLE under all loads included 25 volt and 70 volt audio distribution lines

ROCK SOLID CONSTRUCTION
MADE IN THE USA – most power amps are now imported • All STEEL construction – no plastic • SHALLOW DEPTH 10.5” (except DCM4000) – most amps are 14” to 18” • Rock-solid, fire rated MILITARY SPEC F4 FIBERGLAS™ circuit cards • SMT CONSTRUCTION prevents component shake-down – cement drop tests have proven the mechanical reliability of DCM’s • RECESSED LEVEL CONTROLS – protects controls
• MODULAR CONSTRUCTION – Simply unplug & remove card for replacement • VARIABLE SPEED FAN keeps internal components cool • High density ALLOY HEATSINKS are like heavy-duty radiators keeping all output devices cool even in extreme temperatures
• Large FRONT VENTS enhance circulation for low internal temperatures

SAFETY PROTECTION
SOFT-START CIRCUITS – gradually turns amp on preventing surges to your AC supply plus gently applies voltages to amp’s internal parts • SPEAKER RELAYS – every protection circuit immediately disconnect your speakers • DC PROTECTION – special circuits detect any DC at your speakers for immediate disconnect • SHORT CIRCUIT – disconnects the output section when any short has been detected • OVER-CURRENT – protects output section below rated impedance • UNDER-VOLTAGE – speaker relays are turned off immediately • TEMPERATURE PROTECTION – Turns amp off if fan inlet or outlets are blocked • WIDE AC OPERATION – 120VAC models: 90V to 130V 60 Hz. 240VAC models: 190V to 260V 50Hz)

CONNECTING UP
speaker outputs: BINDING POSTS, SPEAKON™ (except DCM150) & 1/4” CONNECTORS (1/4” not available on other brands) • INPUTS XLR’s and bal. 1/4” • Switchable LIMITORS allows speaker protection from hard clipping
• PARALLEL the inputs at the push of a button allowing you to used one source to drive both channels • BRIDGE the outputs of both channels to get twice the power into one mono output • High current AC input connector with heavy-duty 6’ AC cable • LED indicators: Power ON - yellow, PROTECT - red, channel -20 dBm SIGNAL - green and channel PEAK/CLIP - red

DCM USERS:
• Pete Anderson (Dwight Yokam)
• Philip Bynoe (Steve Vai) • Larry Carlton
• Craig Chaquico • Chris DeGarmo
• Reeves Gabrels • Warren Haynes
• Allan Holdsworth • Will Lee
• Steve Morse • Lee Ritenour
• Chris Squire • Michael Wilton
• Don Weiss-engineer (Beach Boys) • Steve Va
