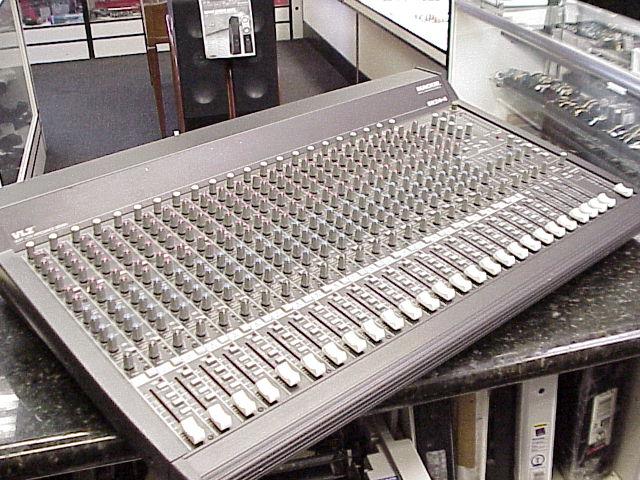

SR244 VLZ 24x4 bus mixing console
 sold

 Pasadena Pawn Shop
  2696 E Colorado Blvd
  Pasadena CA 91107
  626-440-0030



This mixer is in top condition and fully operational.
 Has low hours of use in a clean smoke free environment.

 Comes with power cable and operations manual.



Noise
(20Hz to 20kHz bandwidth, Line inputs to Main L/R outputs, all channels assigned, panned L/R):

Master fader down, Ch. gains down

-94.7dBu

Master fader @ unity, Ch. gains down

-87.4dBu

Master fader @ unity, Ch. gains @ unity

-83.5dBu



Total Harmonic Distortion
(1KHz @ +14dBu 20HzF20kHz, Channel input):

Any output

below 0.00004



Crosstalk
(1kHz @ 0dBu, 20Hz to 20Khz bandwidth, channel in to Main Left outputs):

Channel fader down, channels at Unity

-89.5dB

Channel muted, channels 2-16 at Unity

-88.7dB


Frequency Response
(any input to any output):

20Hz to 50KHz

+0/-1dB

20Hz to 100KHz

+0/-3dB




Maximum Levels

Mic preamp input

+14dBu

All other inputs

+22dBu

Balanced XLR outputs

+28dBu

All other outputs

+22dBu



Impedances

Mic preamp input

1.5kOhms

All other inputs

>10kOhms

All outputs

120Ohms




SR Series dimensions

Equalization

Lo EQ

Shelving

80Hz

15dB

Mid EQ(mono ch)

Peak

100-8kHz

15dB

Hi EQ

Shelving

12kHz

15dB

Microphone Preamp

E.I.N. (150O terminated, max gain):

-129.5dBm

Power Requirements

60 watts

Weight

SR244

31 lbs. (14 kg.)

SR324

40.7 lbs. (18.8 kg.)


For Online Manual

http://www.mackie.com/pdf/archive/sr24-4_sr32-4_om.pdf

Features

When you put all of the SR Series' features together, you'll find two highly-affordable sound reinforcement mixers that have what it takes to serve as flexible live and studio consoles.
High-headroom/low-noise mic preamps (20 on the SR244, 28 on the SR324)
4 buses
6 aux sends
3-band EQ with sweepable mids (4-band fixed EQ on stereo channels)
Low cut filter on all mono channels
"Air" EQ circuit
Talkback section with level control, LED, and separate rear XLR input
"Double-bused" sub outs for eight track recording without repatching
Inserts on all mono channels and subs
AFL/PFL solo on all channels (globally switchable)
60mm log-taper faders for consistent fades
Balanced XLR and 1/4" main outputs
Additional mono XLR main out with level control
Balanced inputs and outputs (except phones, inserts, RCAs)
Built-in power supply
