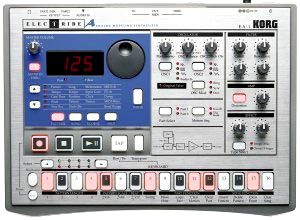

KORG EA-1 ELECTRIBE ANALOG MODELING SYNTHESIZER

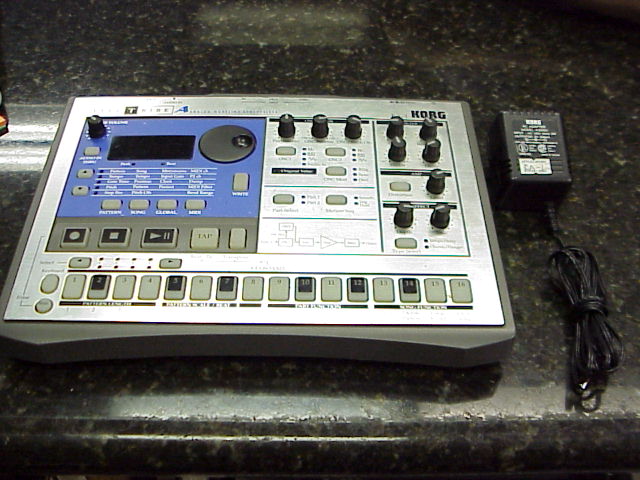

This Korg EA-1 is in primo condition and works perfectly.   Comes with power supply.and manual.



You need to call on the 'Tribe When you're laying down your next big groove, you need the phattest, most aggressive analog synth sounds possible. Korg's new ELECTRIBE series uses the ultimate in analog modeling to give you the richest, most versatile analog-style sounds out there. And with unlimited realtime control of every sound parameter, you know your sound will be just that -- yours.



Build analog sounds by using the ELECTRIBE·A's waveform, filter and effect knobs. (2 VCO + 1 VCF) x 2 parts Create two-part sequenced phrases using the two analog modeling tone generators. Input external audio sources into the ELECTRIBE·A, process them with its resonant filter or effects knobs, and then sync them to your sequence. Modulate the oscillator using Ring Modulation, Sync,or Decimator.

Record filter or effect knob movements of the Synthesizer section in realtime using the "Motion sequence" function. Store a total of 256 (64 x 4 banks) phrases or patterns plus 16 songs consisting of multiple patterns.

Sync the ELECTRIBE·A to other MIDI devices using tap tempo or MIDI clock, or tap in the beat and sync to a turntable or other non-MIDI sound sources. Use the Tempo delay, chorus/flanger, and distortion effects to finesse your sounds and patterns. Control the ELECTRIBE·A from an external sequencer and use it as a MIDI expansion tone generator.

The ELECTRIBE·A is a compact analog modeling synth box that lets you create analog synthesizer, bass, and sound effect sounds simply - just tweak the knob that controls each element of the sound as on an analog synthesizer. Operation is easy and intuitive because the results of moving the knobs are reflected immediately in the sound. The sounds you create on this compact synthesizer can be input to the internal sequencer to create phrases.

The Ultimate In Analog Sounds Having produced classic analog synthesizers such as the "Mini Korg 700," the "PS series," and the "MS series," Korg has a long history of analog sound creation experience. The ELECTRIBE·A takes advantage of years of know-how to simulate every detail of these classic analog sounds. The ELECTRIBE·A contains two of the analog modeling tone generators made famous on Korg's "Prophecy" and "Z1" synthesizers. So you can generate the warm, fat tone and rich distortion that make analog sounds stand out. Dedicated knobs for each parameter allow you to quickly tweak your sounds until you've programmed the perfect patch.

Audio Input For More Sound Flexibility In addition to the two sounds you can program using the ELECTRIBE·A's internal tone generators, you can take sound creation a step further with the external Audio Input. First found on Korg's classic MS-20 analog patching synthesizer, this capability lets you use external audio signals as a sound source that can be synced to the rhythms you create on the ELECTRIBE·A. Plus, you can use the ELECTRIBE·A's filters and effects to process these sounds and mold your own unique sonic creations.

For a demo - including mp3 files - of using the audio inputs on the EA-1 and ER-1, check out: Tips and Tricks: Audio Inputs by James Bernard.

Input By Step Or In Real Time The built-in step sequencer with 16 pad keys makes it easy for you to program patterns from the sounds you create. Each pad keys lights up so you can easily see what rhythm a part is programmed to play. The pad keys can also be played as a pitched keyboard in either step or real time.

Tweak Your Sounds With The "MOTION SEQUENCE" Function Volume dynamics and filter frequencies of the sounds or patterns you create can be modified using the knobs. You can record these changes into the sequencer precisely as you make them. Use this capability to create continuous shifts in the sounds or to gradually apply an effect, creating phrases that include tonal changes. Phrases you create can be stored as a pattern that includes a chosen knob movement, and up to 256 1 to 4-bar patterns can be stored in internal memory.

Control It From An External Source The ELECTRIBE·A can also be controlled from an external sequencer, keyboard, or sampler to function as an analog sound tone generator, or set up to control or be controlled by other hardware or computer-based sequencers.

Sound Generation Method: Analog modeling
Number of Parts: 2
Memory: 256 patterns, 16 songs
Effects: Distortion, Tempo delay, chorus/flanger
Sequencer: (Pattern) 64 steps maximum per part, motion sequence, 1 parameter per part, 64 events,(Song) 256 patterns maximum per song, event recording 65,500 events maximum
Input: AUDIO IN (1/4" phone jack - mono x 1)
Nominal Input Level: -10 dBu
Input Impedance: 47k-ohms
Output: PART 1/MIX, PART 2 (1/4" phone jack - mono x 2), Nominal Output Level = -10 dBu, Output Impedance = 1k-ohm, Headphones (1/4" phone jack), Nominal Level = 21mW + 21mW @ 32-ohms
AD/DA Conversion: 18 bit linear
MIDI: IN, OUT, THRU
Power Consumption: 8W
Power Supply: DC 9V (AC adapter)
Dimensions: 300(W) x 222.5(D) x 53.4(H)mm / 11.8"(W) x 8.8"(D) x 2.1" (H), (including rubber feet)
Weight: 1.25kg / 2.76 lbs
Accessories: AC adapter (DC9V)





By bidding on this auction you get what you see in these pictures




Phone (626) 440 0030
Web Page Http://www.PawnBargains.com


Feel free to e-mail me anytime if you have any questions

Payment Methods: if bidder is in USA  or  Canada only !!!
Visa/MasterCard, American Express, Discover,
you can pay over the phone
or you can send us Money Order - Cashiers Checks - Bank Transfers
 Western Union - Bid Pay
PayPal - most have Confirmed address !!
Sorry no cod's


Other Countries
Money Order - Cashiers Checks - Bank Transfers - Western Union
PayPal - most have !!! Confirmed address be  a verified Member !!
no personal check or credit cards are accepted
welcome to use your FedEx and UPS Accounts  to pay for shipping

IF YOU WISH TO USE THE ESCROW SERVICE
CONTACT ME BEFORE PLACING THE BID

Thanks for bidding.

Shipping Info:

Shipping to be determined by location.
UPS ONLY / welcome to use your UPS Account # to pay  for Shipping
You can use UPS , if you are a local you can stop by & pick up your goods":)

After the Auction - WITH IN 24hr
Please contact us via email or Phone to arrange payment and shipping.
WITH IN 24hr. Send us your address for the total amount of the shipping & handling.



-= TAX - 8.25%  CA ONLY =-
Sorry :( all California  residents need to pay TAX :(( 8.25%
