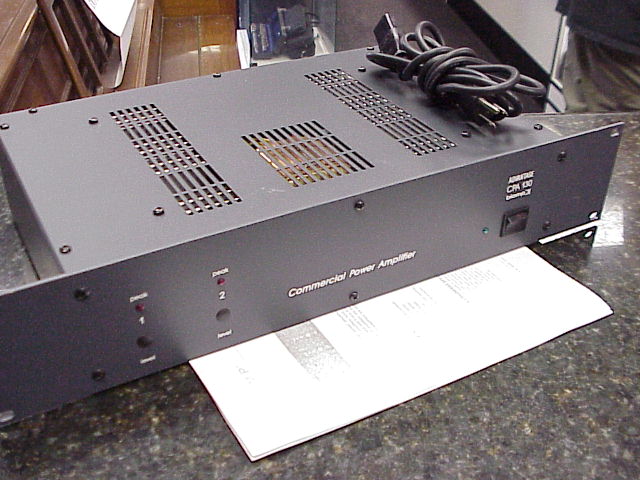

BIAMP CPA 130 Commercial Power Amplifier


SOLD






GENERAL DESCRIPTION

CPA130 dual-channel power amplifiers are designed to supply reliable service in permanent installations. CPA130 amplifiers have complete short-circuit and thermal protection with automatic reset. Barrier strip input and 5-way binding post output connectors provide trouble free, dependable connections. CPA130 amplifiers are passively cooled for quiet operation, without fan noise or filter maintenance.

FEATURES:

Balanced inputs on barrier strip terminals
65 watts/channel @ 4 ohms (stereo)
40 watts/channel @ 8 ohms (stereo)
130 watts @ 8 ohms (mono bridge)
Peak indicators on each channel
Detented level controls (front or rear mounting)
Complete short-circuit and thermal protection
Turn-on muting to prevent "thumping"
Selectable stereo or mono bridge operation
Internal jumpers select HPF (18dB/octave @ 180Hz)
Passively cooled (no fan noise or maintenance)
Optional distribution autoformers (rear panel mounting)

ARCHITECTS & ENGINEERS SPECIFICATION:

The power amplifier shall be capable of stereo or mono-bridged operation. It shall provide a reliable minimum power output of
65 Watts per side into 4 Ohm loads in stereo mode, 40 Watts per side into 8 Ohm loads in stereo mode, or 130 Watts into an 8
Ohm load in mono-bridged mode. The amplifier shall be passively cooled, and shall have complete short-circuit and thermal
protection with automatic reset. Input connections shall be barrier strip terminals, and output connections shall be 5-way binding
posts. An internal jumper shall also select a 18dB/octave 180Hz high-pass filter. The rotary level controls shall be able to be
mounted on the front or rear panel. The amplifier shall have a front panel power indicator, as well as a peak indicator for each
channel. Rear panel holes shall provide mounting of optional autoformers for distributed speaker systems.
Frequency Response shall be +0/-1dB from 20Hz to 20kHz. THD + Noise shall be less than 0.2% from 20Hz to 20kHz at rated
power. Signal-to-Noise Ratio shall be greater than 96dB at rated power into 4 Ohms. Power consumption shall be less than 300
Watts. Dimensions shall be 3.5 inches (2 rack spaces) high, 19 inches wide, and 10 inches deep. Weight shall be 22 lbs.
