ICOM IC-V8 - 2 Meter Transceiver + charger + MIc
sold

5.5 full watts of power, military rugged, and easy to use.

Condition

Completely Functional - Item has been determined to be 100% percent fully functional,
Shop with confidence ++ it's in good  working order ++
has some  minor scratches - mostly on the charger

Included in the auction are

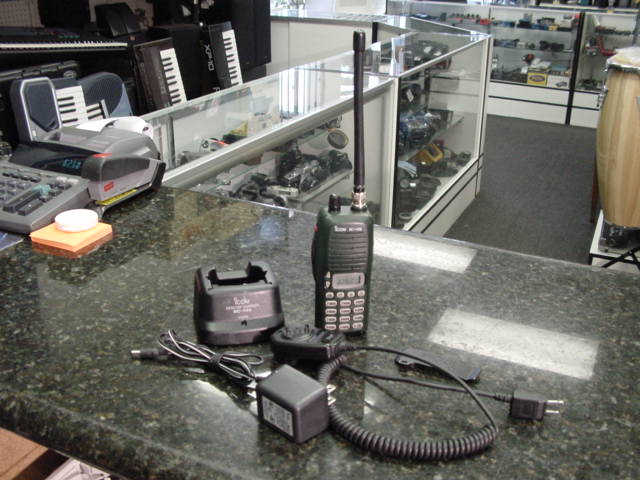

Icom V8 + Charger + Belt Clip + Mic set (  clip on the mic is missing )
More Info >>> http://www.icomamerica.com/products/amateur/v8/specs.asp



Brief summary:

  • Dimensions: 2.2 (W), 5.2 (H), 1.4 (D), 12.3 oz
  • 2 Meter
  • 5.5 Watts with Included Ni-Cd Battery (0.5 W selectable)
  • 107 Total Memory Channels
  • Great Audio - 300 mW Output (at 7.2V DC)
  • CTCSS/DTCS Encode/Decode with Tone Scan
  • 16 Button DTMF Keypad with Encode Standard and Decode Optional
  • Fast Scanning - 40 Channels Per Second
  • Backlit Alphanumeric LCD
  • Fast Scanning - 40 Channels Per Second
  • Auto Repeater
  • Drop-in Charger Included
  • Optional PC Programming
  • Reversible U/Down and Rotary Selector
  • Military Rugged Construction
  • Attractive Forest Green Polycarbonate Front Panel










found  some  info on the internet - i hope  it will answer to most of your  questions



IC-V8 Specification This information is taken directly off of the Icom IC-V8 brochure.



General
  • Frequency range :
    • USA 144148 MHz (Tx), 136174 MHz* (Rx)
    • General (LM) 136174 MHz* (Tx/Rx)
    • *Guaranteed 144148 MHz range only.
  • Operating temp. range : 10C to +60C; +14F to +140F
  • Frequency stability : 10 ppm (10C to +60C)
  • Antenna connector : BNC (50 Ω)
  • Power supply requirement : 7.2 V DC (610.3 V DC acceptable; Icoms battery pack only)
  • Current drain (at 7.2 V DC) :
    • Transmit
      • at 5.5 W: Less than 2.0 A
      • at 0.5 W Less than 0.7 A
    • Receive
      • at max. AF Less than 250 mA
      • Stand-by Less than 70 mA
      • Power saved Less than 20 mA
  • No. of memory channels : 107 (incl. 1 call and 6 programmed scan edges)
  • Tuning steps : 5, 10, 12.5, 15, 20, 25, 30 and 50 kHz
  • Dimensions (projections not included):
    • 54(W)132(H)35(D) mm
    • 21⁄8(W)53⁄16(H)13⁄8(D) in
  • Weight (approx.):
    • 350 g; 12.3 oz (with BP-222)
    • 190 g; 6.7 oz (without battery pack)



Transmitter
  • Modulation system : Variable reactance frequency modulation
  • Output power (at 7.2 V DC) : 5.5 W (High), 0.5 W (Low)
  • Max. frequency deviation : 5.0 kHz
  • Spurious emissions : Less than 60 dB
  • External mic. connector : 3-conductor 2.5 (d) mm (1⁄10″); 2.2 kΩ



Receiver
  • Receiving system : Double conversion superheterodyne system
  • Intermediate frequencies : 1st: 21.7 MHz, 2nd: 450 kHz
  • Sensitivity (at 12 dB SINAD) : 0.16 V typ.
  • Squelch sensitivity : 0.1 V typ.
  • Selectivity : 65 dB typ.
  • Intermodulation rejection : 65 dB typ.
  • Spurious & image rejection : 75 dB typ.
  • Audio output power (at 7.2 V DC): More than 0.3 W at 10% distortion with an 8 Ω load
  • External speaker connector: 2-conductor 3.5 (d) mm(1⁄8″); 8 Ω
