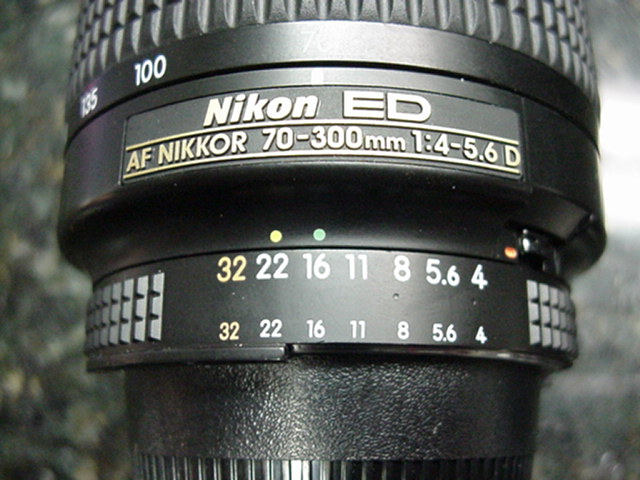

The AF Zoom-Nikkor 70-300mm f/4-5.6D ED high-power
telephoto zoom features a zoom ratio of 4.3x in a compact body, covering
the medium telephoto (70mm) to telephoto (300mm) range. It employs an ED
(Extra-low Dispersion) glass element to compensate for chromatic
aberration which is often found in telephoto lenses, and achieves superior
lens performance — all at a very affordable price, much less than you
might expect. In addition, this new lens is a D-type Nikkor — meaning that
it provides distance information to most current Nikon AF SLR cameras for
the highest quality advanced exposure and flash control.
Major Features
Focal length |
70mm to 300mm |
Maximum aperture |
f/4~5.6 |
Lens construction |
13 elements in 9 groups |
Picture angle |
34°20' to 8°10'
(XX° - XX° with Nikon D-series SLRs) |
Focusing distance |
1.5m (5ft) to infinity |
Maximum reproduction ratio |
1/3.9 |
Aperture scale |
f/4~f/32 |
Minimum aperture lock |
Provided |
Diaphragm |
Fully automatic |
Exposure measurement |
Via full-aperture method with AI cameras or cameras
with CPU interface system; via stop-down method for other cameras. |
Lens hood |
HB-15 bayonet hood (provided) |
Lens case |
CL-72 hard lens case, CL-S4, No. 63 |
Filter attachment size |
62mm screw-in |
Mount |
Nikon bayonet mount |
Dimensions |
Approx. 74mm dia x 116mm extension from flange;
approx. 125mm long (overall) |
Weight |
Approx. 515g |
